Double Head Decoiler Machine for Unwinding 500MM Width Coil

Double Head Decoiler Machine for Unwinding 500MM Width Coil

Double Head Decoiler Machine for Unwinding 500MM Width Coil
Double Head Decoiler Machine for Unwinding 500MM Width CoilDouble Head Decoiler Machine for Unwinding 500MM Width CoilDouble Head Decoiler Machine for Unwinding 500MM Width Coil
CategoriesDouble Head Decoiler
BrandFANTY -Steel Coil Handling Equipment Manufacturer
ModelDBMT Series Hydraulic Expansion Double Head Uncoiler Machine
ColorStandard white (other colors are available)
Payment30% T/T as deposit, rest against shipping
CertificateISO, CE
Customized ServiceYes
FOB portFOB Shenzhen
Download
Update TimeSep 17,2024
Detail Information
A Double Head Decoiler is an advanced type of Decoiler Machine designed to enhance efficiency and productivity in coil handling operations. As a specialized piece of Coil Handling Equipment, a Double Head Decoiler features two decoiling heads, allowing for simultaneous uncoiling of two metal coils. This innovative design significantly reduces setup times and increases throughput, making it an ideal choice for high-volume manufacturing environments. This Type Double head decoiler machine can unwind steel coil width 500mm with each head coil loading 1500kgs.
Features of Hydraulic Expansion Double Head Decoiler Machine
Hydraulic Expansion Double Head Uncoiler Machine
Hydraulic Expansion Double Head Decoiler for Sale

* steel coil width handling range: 500mm

* steel coil thickness handling range: 0.35~1.6mm

* coil I.D: Ø450~530mm

* coil O.D: 1200mm

* per side coil Loading Weight:1500kgs

* Mandrel Expansion: Hydraulic Expansion

Specification of of Hydraulic Expansion Double Head Decoiler Machine
Model
DBMT-500
Coil Width
500 mm
Coil Thickness
0.35 mm – 1.6 mm
Coil I.D.
Ø450~530mm
Coil O.D.
Ø1200mm
Coil Loading Weight
1500 kgs per side
Mandrel Expansion
Hydraulic Expansion
Production & Packaging of Double Head Decoiler Machine
Hydraulic Expansion Double Head Uncoiler Machine working with press and this is the stamping part

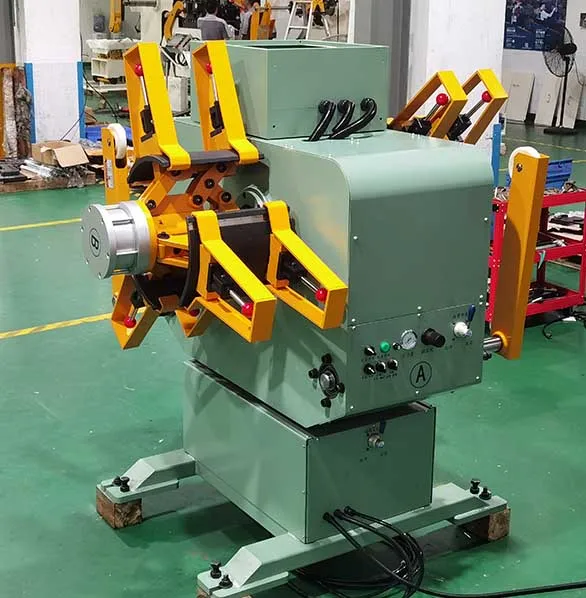

Hydraulic Expansion Double Head Uncoiler Machine is produced at fanty factory
Hydraulic Expansion Double Head Uncoiler Machine is produced at fanty factory
Hydraulic Expansion Double Head Uncoiler Machine is ready for shipping to our customer
Company details
Fanty is a manufacturer of decoiler, feeder and press machine. We are providing automated stamping solutions
Learn Fanty Machinery Now!

Fanty machine focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.

 MORE

FAQ
Q: How should the hydraulic expansion double head decoiler machine be installed and maintained?
A: Before you use the hydraulic expansion double head decoiler, we will email you the installation operation video and operation tutorial in English. If you are still unable to operate, we will post online video instructions.
Q: How long till the hydraulic expansion double head decoiler machine are prepared for shipping?

A: The sales team must be informed of the precise delivery date. It can be dispatched within five days if we have stock. It will take 30 to 35 days to prepare the goods if they are not already in stock.

What type of transportation do the goods use?

A: You can choose the precise mode of transportation based on your demands, such as by train or by water. The majority of our trade terms are focused on exw, also FOB is available

Q: What's your pre-sale support on hydraulic expansion double head decoiler machine?

1. Each year, we participate in a number of exhibitions, and hundreds of customers stop by our stand to speak with us more.

2. Constant online consultation and inquiry help.

4. You are welcome to see our factory.

Q: What's your following-sale after we buy your hydraulic expansion double head decoiler machine?

1. Engineers are available for training in the client's factory.

2. A one-year warranty

3. Round-the-clock technical assistance through phone or email

4. An English user handbook for operating and maintaining the machine

Since we are aware that quality is essential to businesses, we have integrated quality control into every step of the production process, including product development, design, purchasing, processing, assembly, and testing. To prevent any subpar products from being shipped out before delivery, the entire organization participates in quality management. Each equipment has been inspected using the following procedures:

a.100% quality testing, which involves rigorous mechanical assembly and electrical performance tests on every unit before delivery;

b. Before delivery, every machine was checked using a 100% sample, or processed sample;


c. We always strive to provide "ALL FOR CUSTOMERS" service. Advanced management and top-notch service

By enabling us to deliver prompt, effective services and substantially assure product stability, the system effectively provides a guarantee for the regular operation of the system.
